Compatible with any bike frame that has 2 standard 64mm spacing bottle cage mounts (most modern frames)
Hardware included is T25 Torx head
Compatible with any bike frame that has 2 standard 64mm spacing bottle cage mounts (most modern frames)
Hardware included is T25 Torx head
Product description

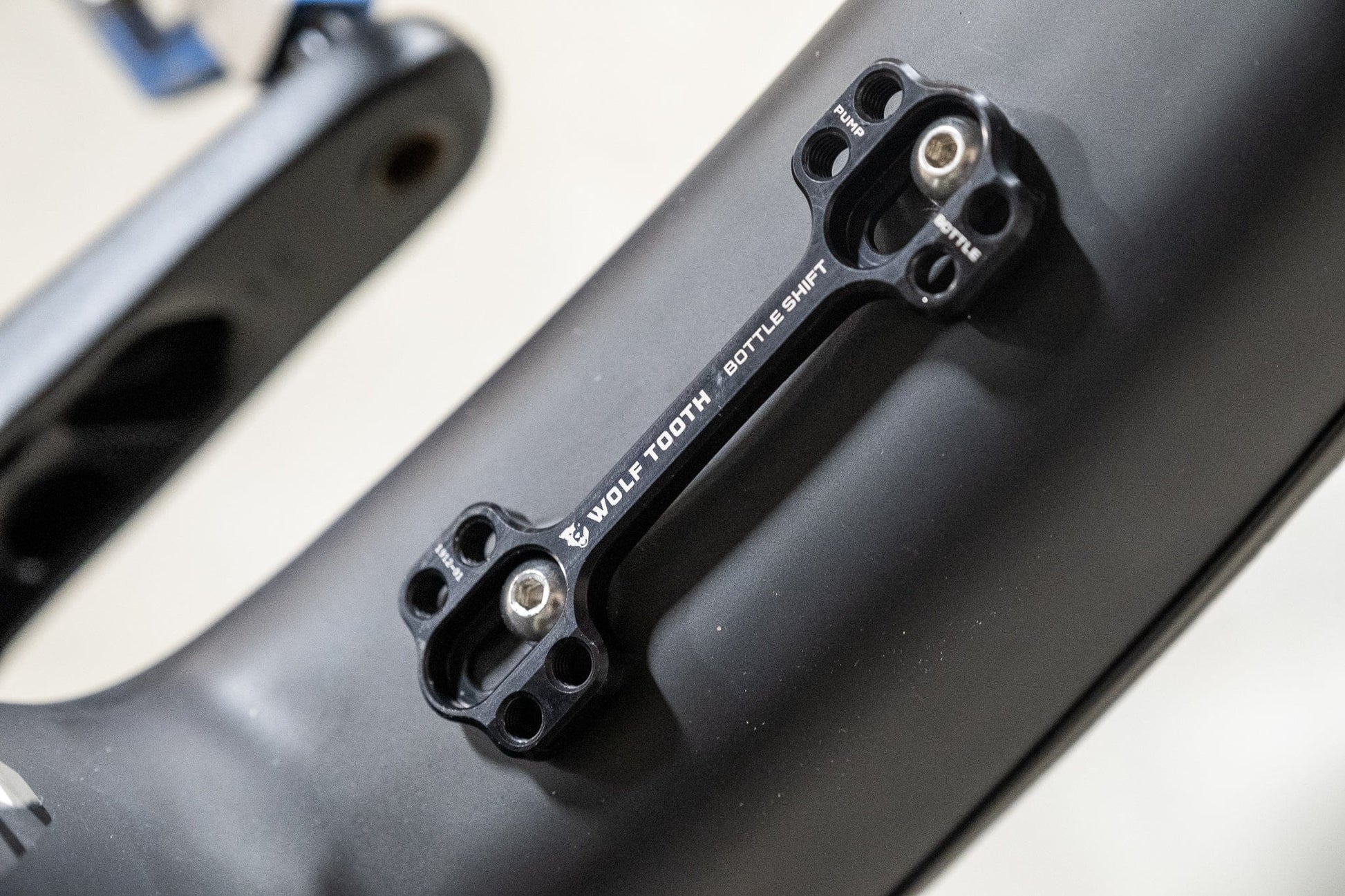

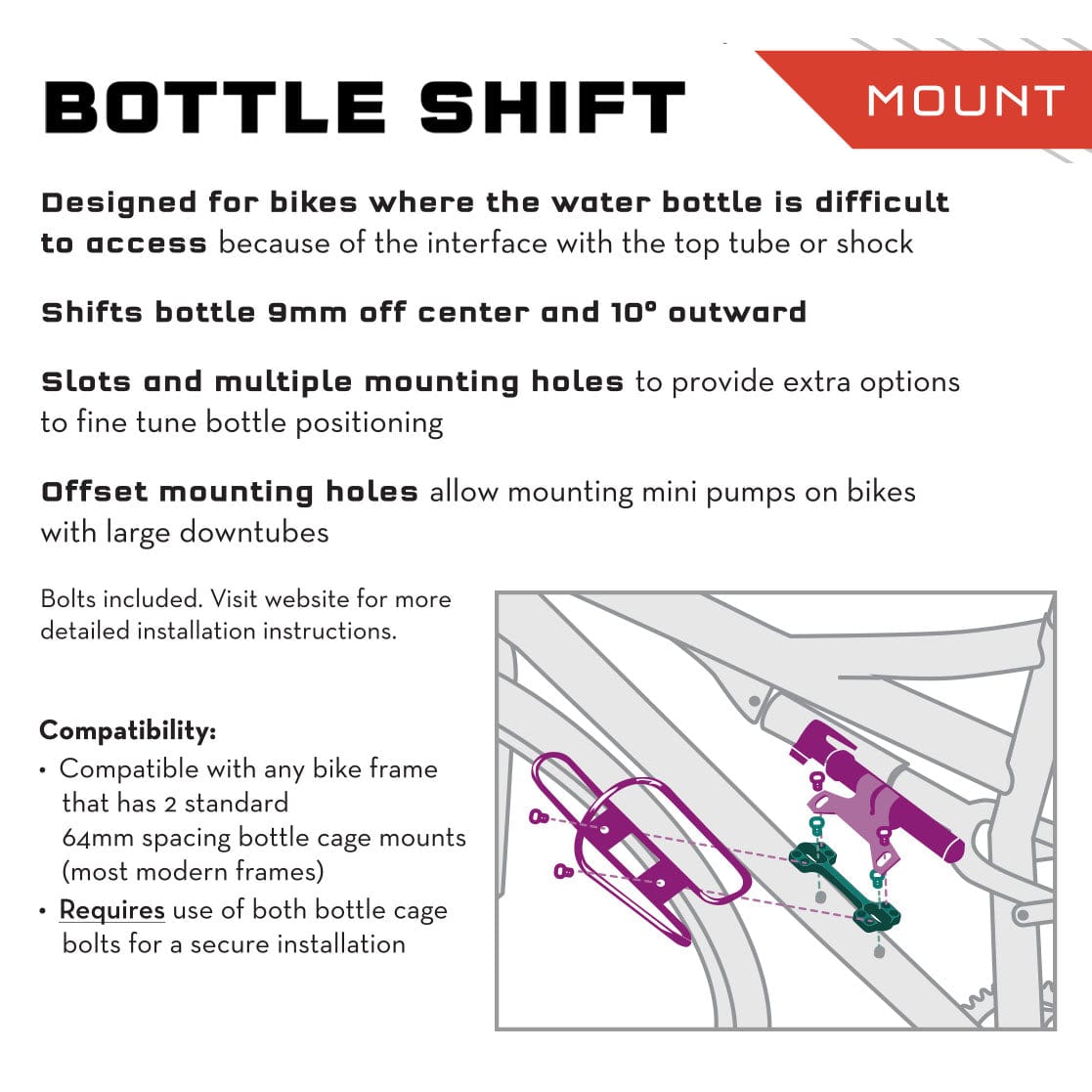

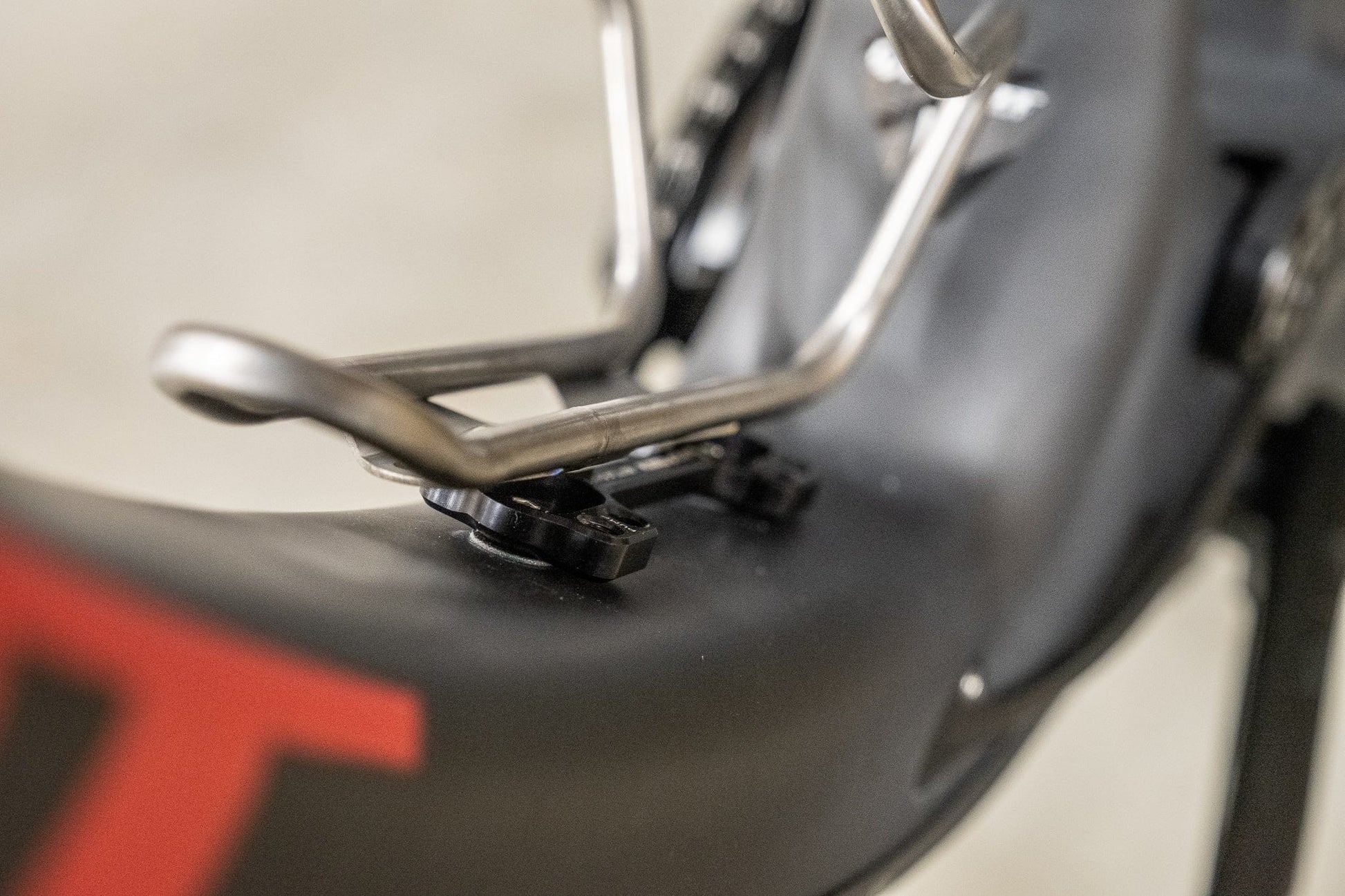

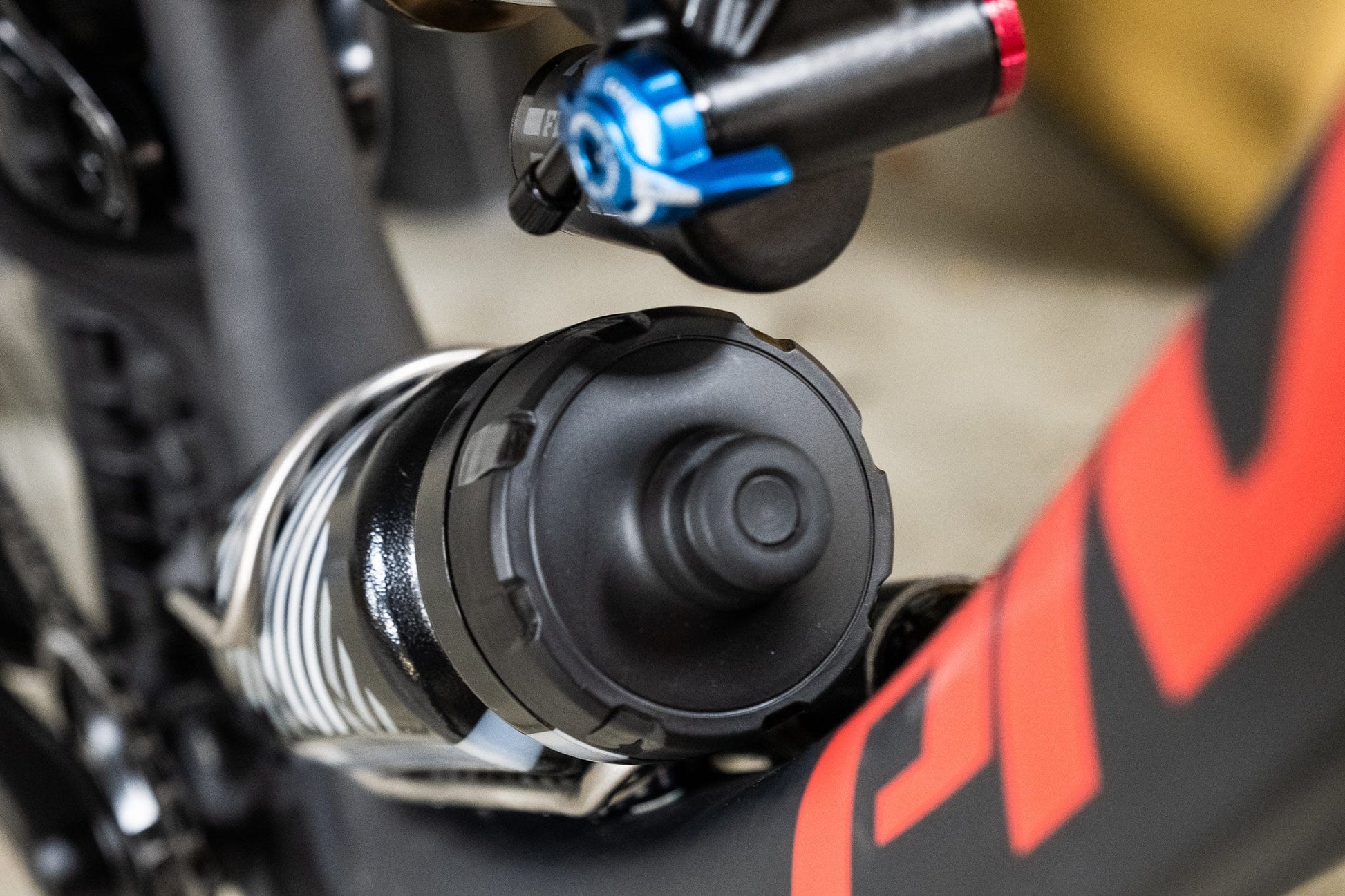

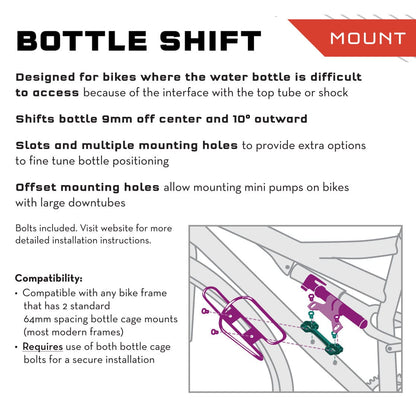

Bottle Shift is designed to offset a bottle to a more optimal location and make it possible to also mount a pump on frames with large downtubes. It is most commonly used on dual suspension frames where the water bottle is difficult to access because of interference with the top tube or shock. By shifting the bottle slightly off center and tilting it outward, clearance is greatly improved.

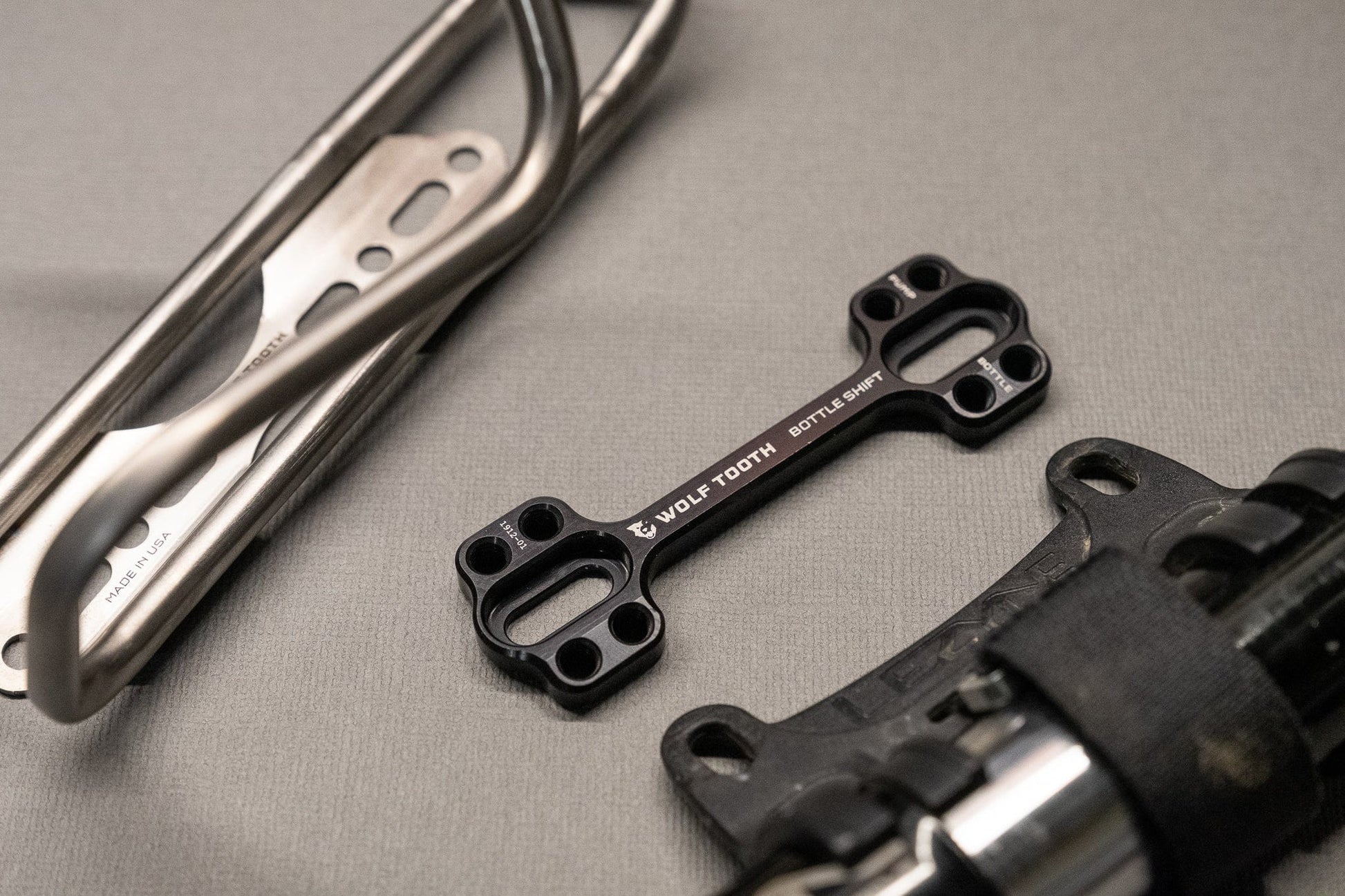

✅ Slots and extra tapped holes in the mount provide 18mm of bottle position adjustment. This allows the bottle to be mounted as low as possible in the frame for improved clearance or moved upward for easier reach
✅ Designed to be easily flipped to provide either left or right hand bottle access.

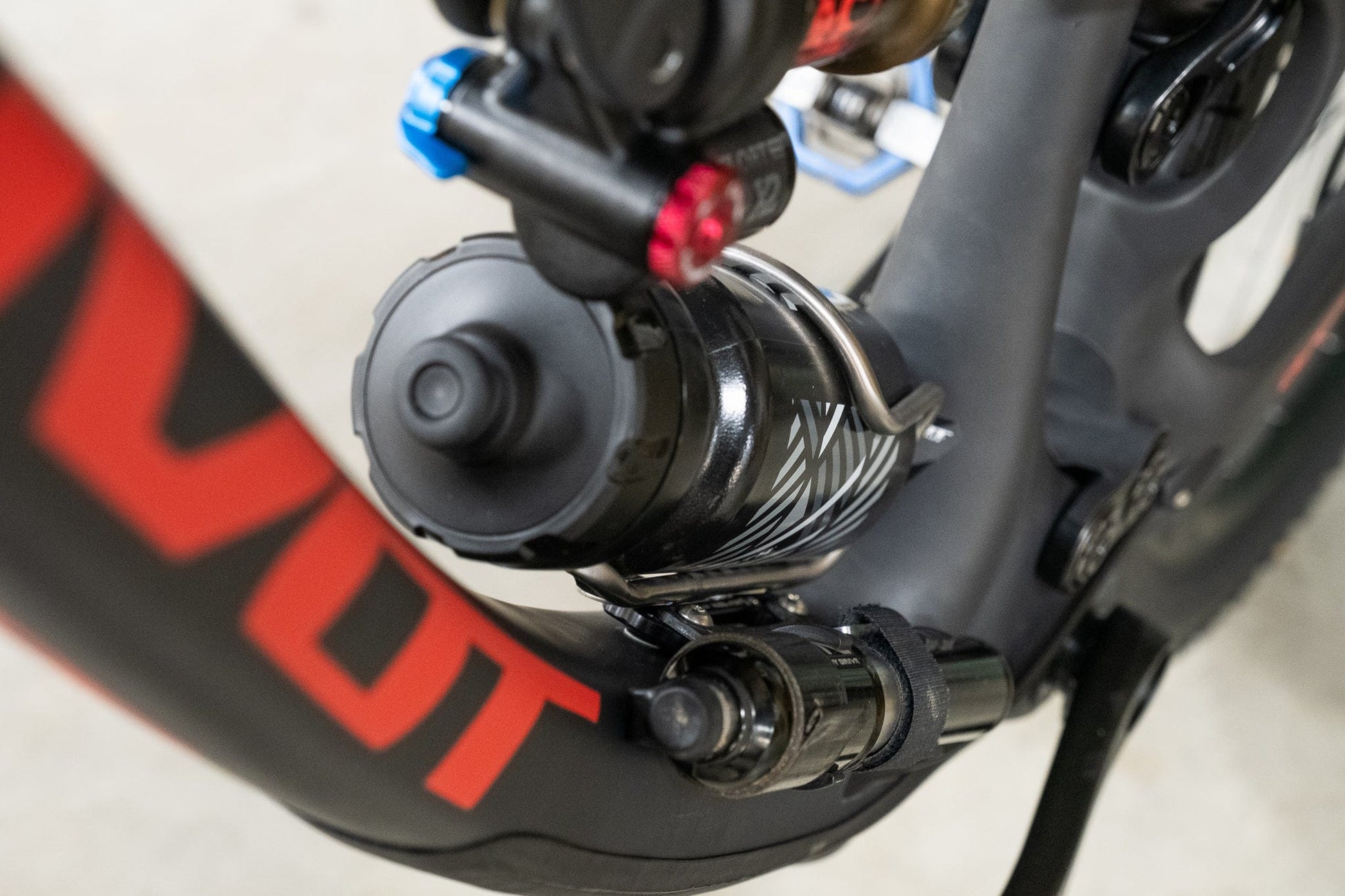

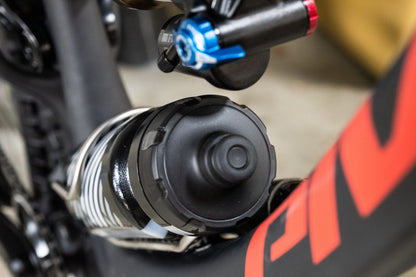

✅ Centerline of the bottle moves 18mm with the combined 10-degree tilt and 9 mm offset. This makes it much easier access to the bottle, even on hardtails or road/gravel bikes. On some full suspension bikes it may not be possible to fit a bottle under the frame shock without this offset

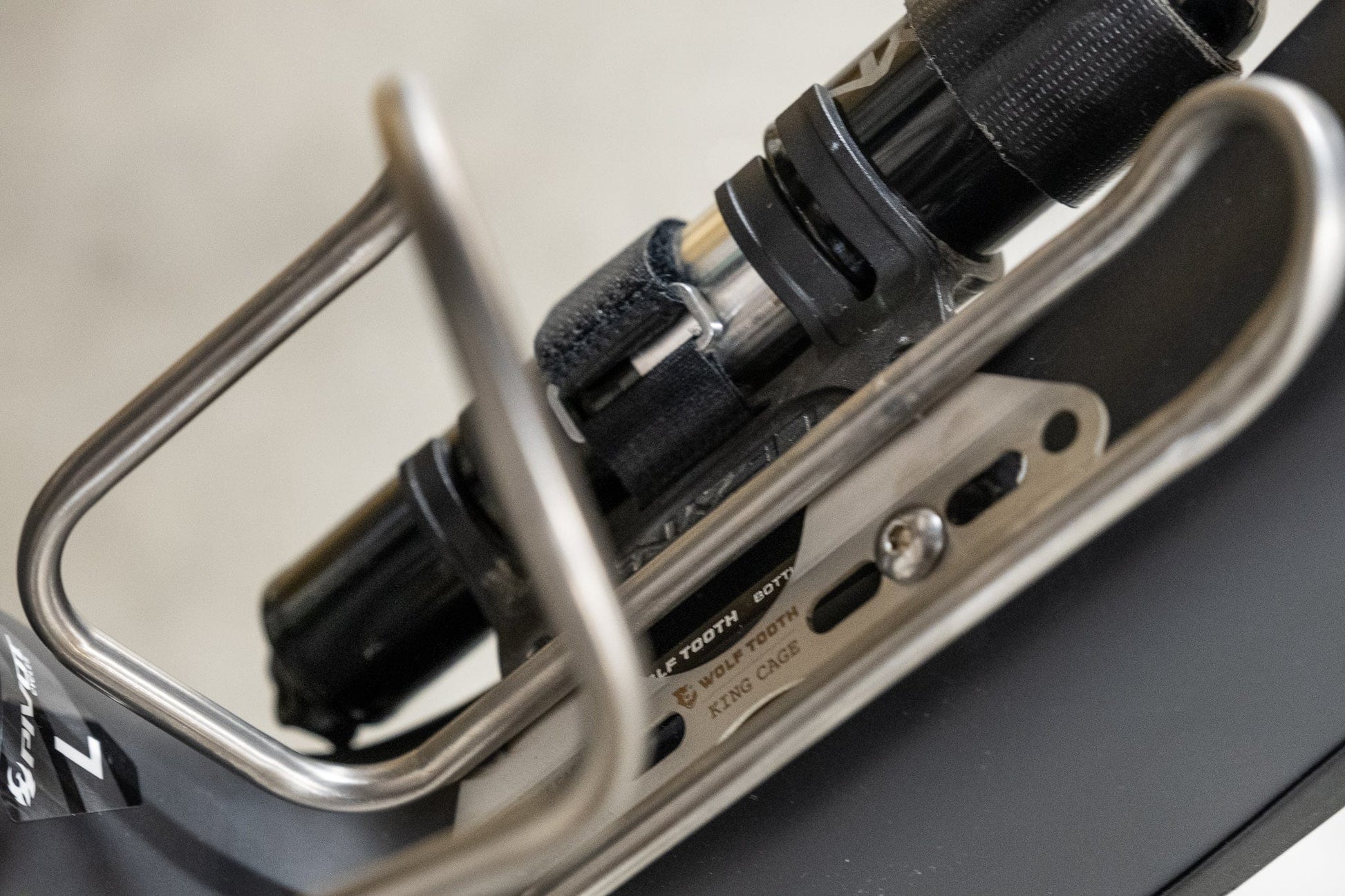

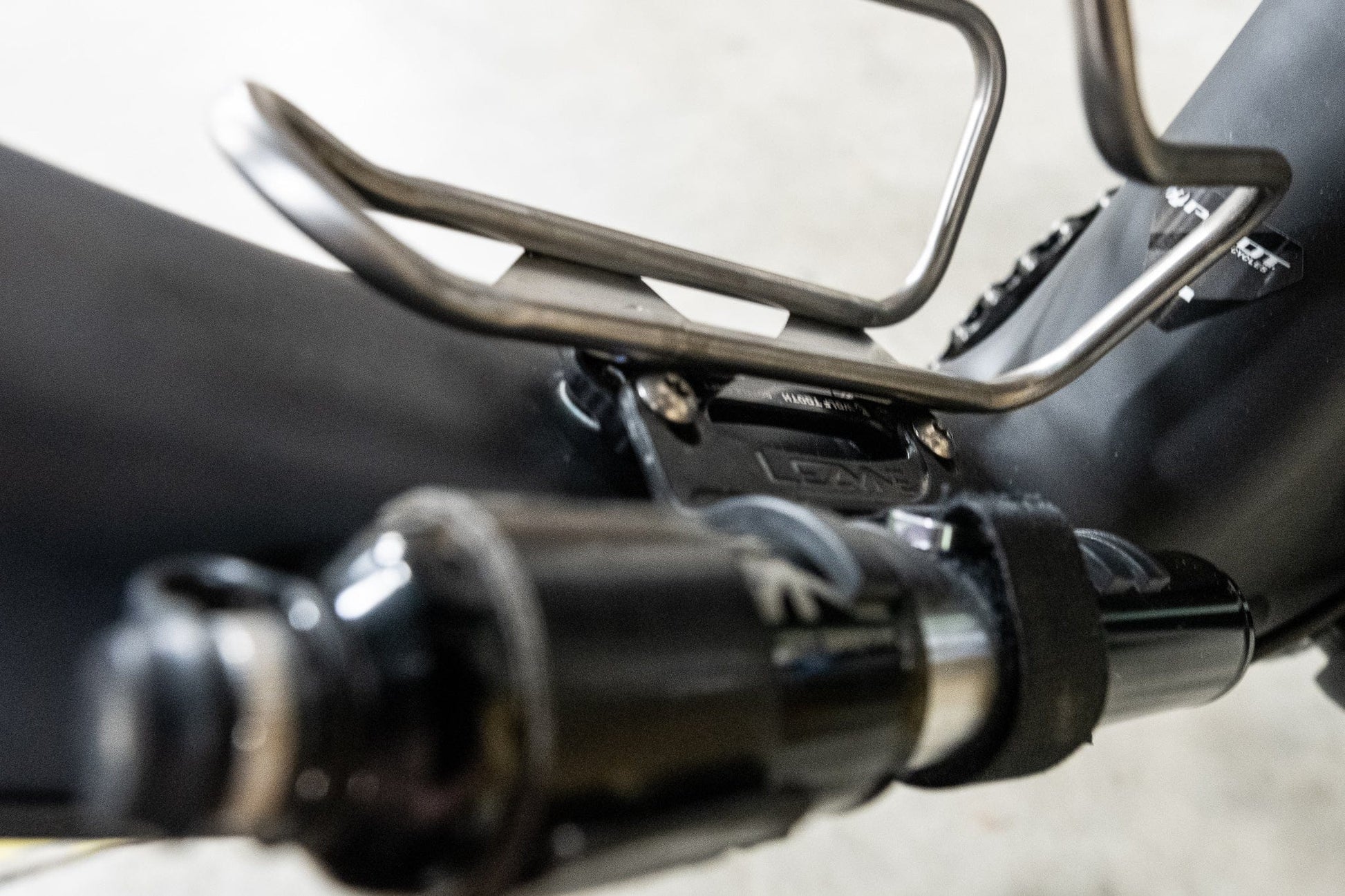

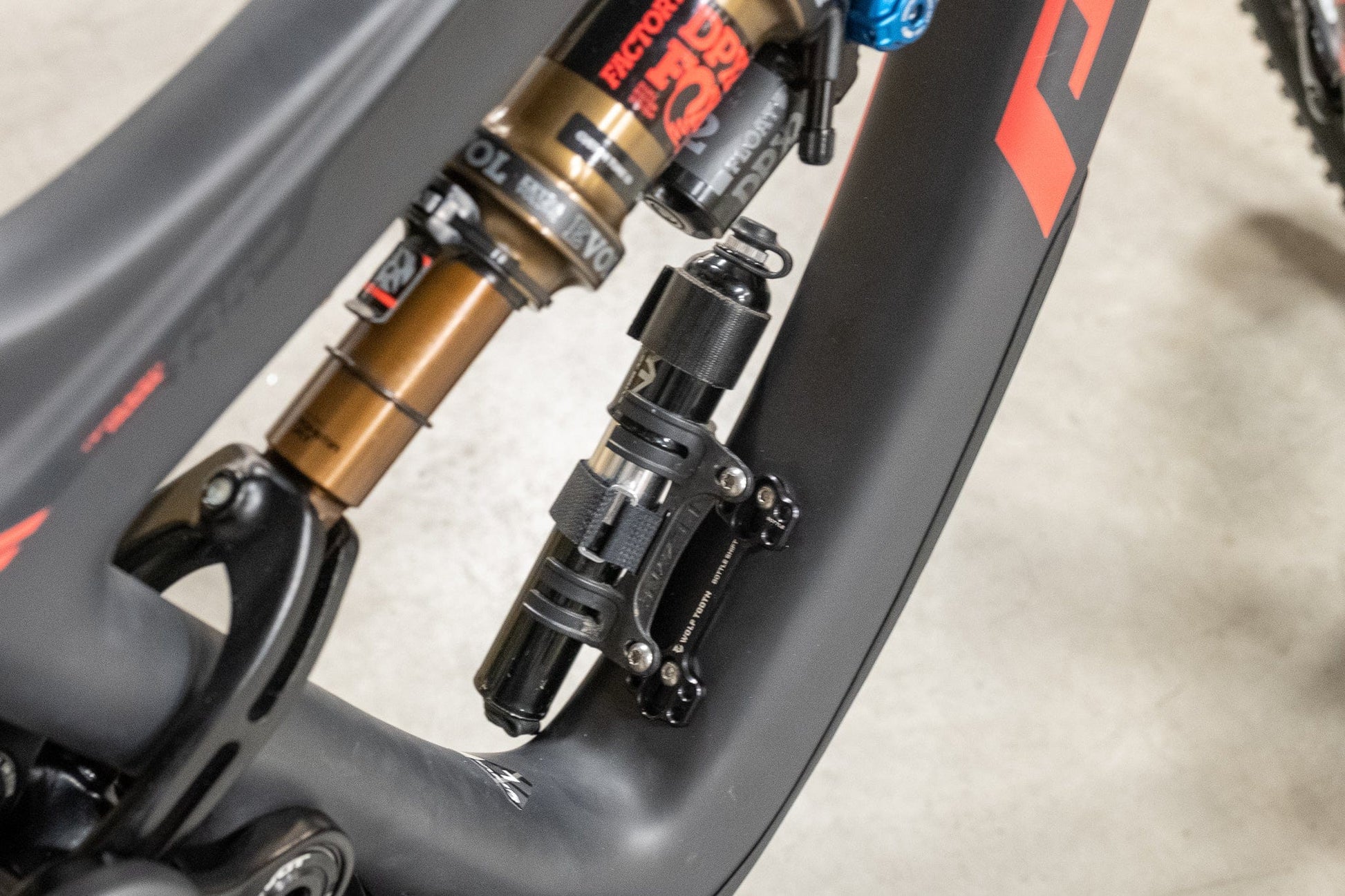

✅ Offset of pump bracket mounting holes allows mounting mini pumps on most mountain bikes (brackets for many pumps do not clear the frame on mountain bikes)
Ships directly from the Wolftooth warehouse.
Bottle Shift is designed to offset a bottle to a more optimal location and make it possible to also mount a pump on frames with large downtubes. It is most commonly used on dual suspension frames where the water bottle is difficult to access because of interference with the top tube or shock. By shifting the bottle slightly off center and tilting it outward, clearance is greatly improved.
✅ Slots and extra tapped holes in the mount provide 18mm of bottle position adjustment. This allows the bottle to be mounted as low as possible in the frame for improved clearance or moved upward for easier reach
✅ Designed to be easily flipped to provide either left or right hand bottle access.
✅ Centerline of the bottle moves 18mm with the combined 10-degree tilt and 9 mm offset. This makes it much easier access to the bottle, even on hardtails or road/gravel bikes. On some full suspension bikes it may not be possible to fit a bottle under the frame shock without this offset
✅ Offset of pump bracket mounting holes allows mounting mini pumps on most mountain bikes (brackets for many pumps do not clear the frame on mountain bikes)
Ships directly from the Wolftooth warehouse.
Specs
Tech Specs

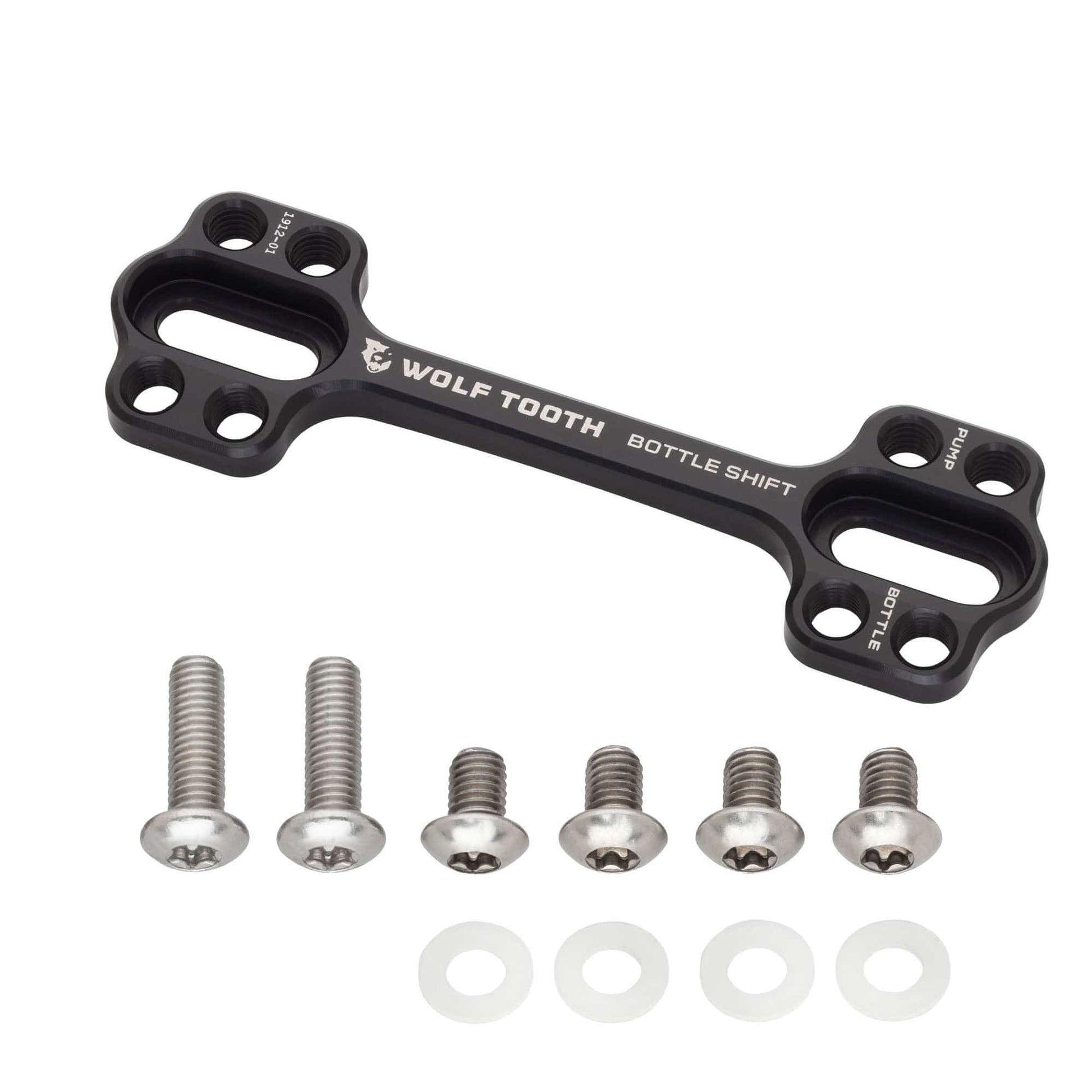

Material: 6061-T6 aluminum bracket, stainless steel mounting hardware Weight: 24g (including all hardware) Maximum load: 1700g Tools Needed: T25 Torx Torque: 3-4 Nm Made in the USA
Material: 6061-T6 aluminum bracket, stainless steel mounting hardware Weight: 24g (including all hardware) Maximum load: 1700g Tools Needed: T25 Torx Torque: 3-4 Nm Made in the USA
